Defects in timber are natural or induced imperfections that can significantly impact wood’s structural performance, aesthetic value, and durability in construction. These imperfections, ranging from growth abnormalities to seasoning issues, affect approximately 20-30% of commercially harvested timber globally. Understanding these defects is crucial for construction professionals, as they directly influence material selection, structural integrity, and project costs.
Timber defects pose significant challenges in construction:
- Structural Integrity: Defects can reduce a timber member’s load-bearing capacity by up to 40-50%, particularly in cases of severe knots or splits
- Project Costs: Defective timber accounts for approximately 15-25% of material wastage in construction projects
- Maintenance Requirements: Buildings with defective timber elements often require maintenance 2-3 times more frequently than those with quality timber
- Safety Concerns: Over 60% of timber structure failures are attributed to undetected or improperly assessed defects
Understanding timber defects is not just about identifying imperfections – it’s about ensuring construction safety, optimizing material usage, and maintaining structural integrity throughout a building’s lifecycle. As the construction industry increasingly focuses on sustainable materials, proper defect assessment and management become even more critical for successful project outcomes.
i. Defects In Timber Due To Abnormal Growth
Following are some of the important defects in timber due to abnormal growth or rupture of tissues due to natural forces:
1.Checks
Longitudinal cracks typically perpendicular to the annual rings. These significantly reduce timber durability by allowing the easy ingress of moisture and air.
2.Shakes
Shakes: Longitudinal separations between annual rings. While these separations decrease shear strength, they have less impact on compressive and tensile values. Shakes make the wood less desirable, especially when appearance is crucial. If shakes or checks occur near the neutral plane of a beam, they can substantially weaken its resistance to horizontal shear.
Heart Shake: Arises from the shrinkage of heartwood in overmatured trees. Cracks initiate from the pith and extend towards the sapwood, being wider at the center and tapering outwards.
Cup Shake: Appears as curved splits partially or fully separating annual rings. Frost action on the sap within young trees often causes this type of shake.
Star Shake: Radial splits wider at the circumference and narrowing towards the tree’s center. This defect can result from severe frost or intense sun heat. When the wood dries below the fiber saturation point, star shakes become evident. They are a significant fault, leading to logs separating when sawn.
Radial Shake :Radial shakes share similarities with star shakes but differ in their irregular, fine, and numerous shapes. These cracks, while similar in origin to star shakes, tend to exhibit a more irregular and finer pattern. Radial shakes occur when timber is exposed to direct sunlight during the seasoning process post-felling. The exposure to the sun’s rays contributes to the development of these irregular cracks within the timber.
- Ring Shake :Ring shakes occur when cup shakes encompass the entire ring of timber. This particular defect involves a tangential separation of wood fibers, affecting parts of the annual rings. Ring shakes often manifest as fine separations that are not readily visible in freshly cut (green) wood but become apparent in dry timber. The subtlety of these separations in greenwood makes them challenging to detect initially. However, they become more visible as the wood dries, indicating a tangential separation along the annual rings.
3.Rind Gall
Characterized by swelling caused by sapwood layers growing over wounds left by irregular branch cutting. The newly developed layers do not properly merge with the old wood, creating cavities where decay initiates.
4. Knots
Knots: Bases of twigs or branches enclosed by the growth of the mother branch. Knots disrupt the wood’s grain direction, reducing its strength and affecting appearance. Knots vary in size, form, quality, and occurrence.. Knots are classified on the basis of size, form, quality and occurrence.
Size: Pin knot (under 12 mm), small knot (12–20 mm), medium knot (20–40 mm), and large knot (over 40 mm).
Form: Round knot and spike knot (revealed when sawed lengthwise).
Quality: Sound knot—firm and solid like the surrounding wood, decayed knot—softened by decay, encased knot—annual rings fail to merge with surrounding fibers, tight knot—firmly secured in the finished product.
Occurrence: Single knot—wood fibers deflect around one knot, cluster knot—wood fibers deflect about two or more knots together, branch knot—two or more knots radiating from a common center.
Beside other types of Knots are :
Live Knot: In this type, there is complete continuity between the fibers of the branch and the trunk. The term “intergrown” characterizes a knot where at least 75% of the knot’s perimeter fibers are continuous with those of the trunk.
Dead Knot: This type indicates a knot in which continuity between the branch and trunk fibers is less than 25%.
Encased Knot: Here, the entire cross-section of the knot is surrounded by bark or resin.
Think You Know Timber?
Put your expertise to the test! Challenge yourself with our Multiple Choice Questions on timber and wood products.
5. End Splits
Caused by excessive sap evaporation at log end grains. Prevention includes painting the exposed ends with waterproof paint or capping them with hoop iron bandages.
6. Twisted Fibers
Occur when wind consistently turns the trunk of a young tree in one direction.

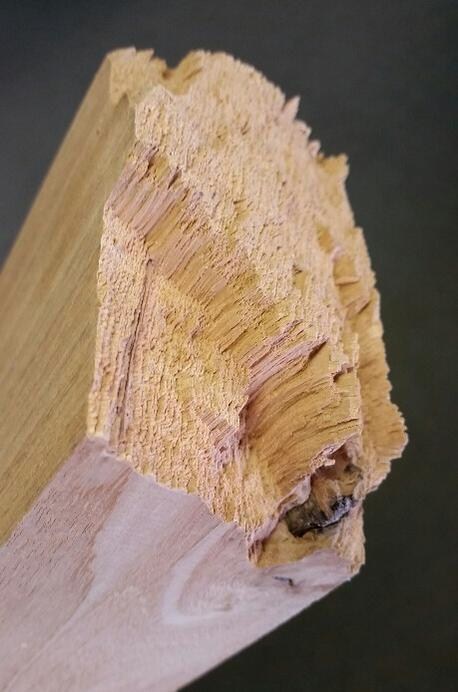

7. Upsets
Upsets: Result from the crushing of fibers transversely during tree growth due to strong winds or unskilled felling, resulting in fiber discontinuity.
8. Foxiness
Foxiness: A sign of decay found in overmature trees, appearing as yellow or red discoloration.
9. Rupture
Rupture: Caused by injury or impact.
Each defect significantly impacts timber quality and utility, making it crucial to identify and address these issues during the wood processing and utilization stage
ii. Defects In Timber Due To Conversion
“Conversion” refers to the transformation of a felled tree into marketable timber sizes. Defects in timber during this process often result from improper milling practices or attempts to cut corners for economic reasons.
1.Wane
Wane refers to an edge or corner of a piece of timber that retains the rounded or irregular shape of the tree’s natural outer surface rather than being squared or edged during processing. It’s essentially the bark-covered area or the irregular edge of the wood that hasn’t been completely removed, leaving a rounded or irregular surface on one or more edges of the board.
When a tree is processed into lumber, the outer rounded edges or portions that include bark may be present on the final piece of timber. This is considered a defect in terms of grading and quality in many cases because it can reduce the usable surface area of the wood and impact its appearance and structural integrity.
Wane is generally not desired in high-quality timber products as it affects the dimensions and finish of the wood. In applications where precise measurements or a clean appearance are essential, wane can pose challenges. However, in certain instances, such as for specific industrial uses or where structural strength is more critical than appearance, some amount of wane might be acceptable within specified limits.
2.Excessive Slope Of Grains
When the conversion is not executed parallel to the trunk’s axis, it can lead to an excessive slope of grains. This deviation from the ideal conversion direction can be classified as a conversion defect.
These defects significantly impact the quality and strength of the timber, underscoring the importance of proper milling practices and adherence to appropriate conversion techniques.
3.Chip Mark
A chip mark in woodworking typically refers to a small indentation or flaw on the surface of wood caused by the removal of wood chips or splinters during cutting, shaping, or machining processes. These marks appear as tiny grooves, indentations, or irregularities on the wood’s surface due to the removal of small pieces of wood.
Chip marks often occur when woodworking tools, such as saws, planes, or routers, encounter irregularities in the wood grain, knots, or variations in density. As the tool passes through the wood, it may catch or remove small chips, leaving behind these marks on the surface.
While chip marks might not compromise the structural integrity of the wood, they can affect the surface’s smoothness and appearance, especially in finished products where a flawless surface is desired. Woodworkers employ techniques like adjusting cutting tools, controlling cutting speeds, and using appropriate cutting angles to minimize chip marks and achieve a smoother finish on the wood surface. Regular maintenance of cutting tools and choosing suitable methods for different wood types can also help reduce chip marks during woodworking processes.
4. Torn Grain
Torn grain in wood refers to a type of wood surface defect where the wood fibers are ripped or torn rather than cleanly cut during machining, cutting, or shaping processes. It appears as rough, uneven patches where the wood fibers have been torn apart, resulting in a ragged or fuzzy texture along the surface of the wood.
Torn grain typically occurs when woodworking tools, such as saws, planers, or routers, encounter the wood fibers at an angle that causes them to tear instead of being cleanly cut. This tearing can happen due to various factors, including changes in grain direction, irregularities in wood density, or using improper cutting techniques or tool settings.
The torn grain defect affects the visual appearance and smoothness of the wood surface. In finished products or pieces requiring a smooth and refined surface, minimizing torn grain is crucial. Woodworkers employ techniques such as adjusting cutting angles, using sharp and appropriate cutting tools, and paying attention to the wood grain direction to reduce torn grain and achieve a smoother surface finish. Additionally, sanding or refining the surface after machining can help mitigate torn grain and enhance the overall appearance of the wood.
iii. Defects In Timber Due to Seasoning
Seasoning-related defects stem from the natural movements occurring in timber due to fluctuations in moisture content. Improper drying methods, uneven drying, exposure to adverse weather like wind and rain, and inadequate stacking during seasoning contribute to distortions in timber. These defects often lead to loosening of fasteners or disruption of decorative elements, or both.
The common types of seasoning defects include:
1.Case Hardening
Case hardening refers to a condition where the outer layers of the wood dry and shrink faster than the inner layers during the drying process. This results in a tension imbalance between the outer and inner layers, causing the outer layers to become harder and form a shell-like surface while the inner layers remain relatively softer.
Case hardening in timber occurs during the drying process when wood is subjected to rapid or uneven drying conditions, such as high temperatures or exposure to sunlight. This uneven drying causes the outer layers to dry and contract more quickly, forming a hardened shell that can prevent further moisture loss from the inner layers. However, this hardened shell can also trap moisture inside, potentially leading to internal stresses and problems like warping, splitting, or decreased strength.
2. Honey Combing
Honeycombing in timber refers to a defect that occurs during the drying process. It manifests as a series of cavities or voids inside the wood, resembling a honeycomb or a series of small hollow areas within the timber.
This defect arises when the outer layers of the wood dry faster than the inner core. As the outer layers shrink due to drying, they create tension, and if this drying occurs too rapidly or unevenly, the tension can cause internal stresses. These stresses can lead to the formation of voids or gaps within the wood, resulting in the honeycomb-like pattern.
Several factors can contribute to honeycombing:
Rapid Drying: High temperatures or excessive drying rates can cause the outer layers of the wood to dry too quickly, leading to tension and the formation of voids.
Thicker Pieces of Timber: Thicker pieces take longer to dry uniformly. If not properly controlled, this can lead to uneven drying and the development of honeycombing.
Wood Species: Different wood species have varying susceptibilities to honeycombing due to their inherent properties and structure.
3. Collapse
Collapse during seasoning, also known as collapse in wood drying, refers to a defect that occurs when wood cells collapse or shrink excessively during the drying process. This collapse leads to a reduction in the volume of the wood, resulting in deformations such as surface checking, cupping, warping, or cracking.

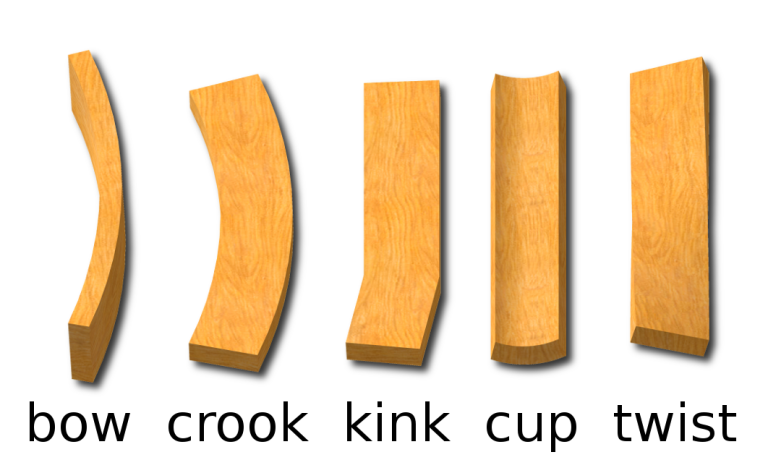

4. Twisting
This defect occurs when there are different rates of shrinkage or moisture loss across the timber. As the wood dries unevenly, the fibers shrink at varying rates, causing the wood to twist along its length. The result is a spiral distortion, where the corners or edges of the timber no longer align properly when viewed from the end.
5. Cupping
Cupping arises due to differential moisture absorption or loss across the width of the timber. For instance, if one side of the wood gains moisture or dries at a different rate compared to the other side, it causes the wood to curve across its width, forming a concave or convex shape.
6. Bowing
Bowing occurs when there are uneven drying conditions along the length of the timber. If one side of the wood dries faster or absorbs moisture differently than the other side, it results in a curvature along the length of the wood, making the piece appear bowed or arched.
7.End Split
End splits or checks develop due to internal stresses within the wood caused by changes in moisture content. When the ends of a log or a piece of timber dry too quickly or if there’s a significant moisture gradient between the center and the ends, it creates tension. This tension can lead to cracks or splits that form at the ends of the wood.
iv. Diseases of Timber
1. Dry Rot
Dry rot is a type of decay that affects wood when it’s exposed to excessive moisture combined with poor ventilation. Despite its name, dry rot occurs in damp or moist conditions and can affect both hardwood and softwood.
This type of decay is caused by certain types of fungi that thrive in environments with high moisture content (above 20%) and limited airflow. The fungi break down the wood’s cellular structure, causing it to become brittle, shrunken, and cracked. The affected wood may appear dry and crumbly, hence the term “dry rot,” but the presence of moisture is essential for the fungus to thrive.
Dry rot spreads through spores that can travel through air or porous materials, allowing it to affect adjacent wood surfaces. It can cause severe damage to wooden structures, compromising their structural integrity over time if left untreated. Fungus rapidly dies when exposed to air or sunlight. The best remedy is to cut away the affected part and paint the remaining part.
2. Wet Rot
Wet rot is another form of wood decay caused by fungal growth but is distinct from dry rot in its moisture requirements and the types of fungi involved. Unlike dry rot, wet rot doesn’t necessarily require extremely high moisture levels to thrive; it can develop in wood with consistently high moisture content, typically above 30-50%.
Wet rot occurs when wood is consistently exposed to damp conditions, often due to issues like leaks, poor ventilation, or prolonged exposure to moisture. The fungi that cause wet rot break down the wood by feeding on its cellulose components, leading to decay. Unlike dry rot, wet rot tends to remain localized in areas where moisture levels are high and doesn’t spread as aggressively.
Wet rot typically affects the wood’s structural integrity but is generally less destructive than dry rot. However, it can still cause significant damage if left untreated, leading to softening, darkening, and deterioration of the affected wood.
Preventing wet rot involves addressing sources of moisture, ensuring good ventilation, and maintaining the wood’s protective coatings.
3. Brown Rot
Brown rot is a type of wood decay caused by certain fungi that primarily target the cellulose and hemicellulose components of wood, leaving behind the lignin. This selective degradation results in wood that becomes dry, cracked, and has a brown or reddish-brown appearance. It’s called “brown rot” due to the coloration that often accompanies the decay process.
The fungi causing brown rot break down the wood’s structural components, resulting in a cubical fracture pattern and shrinking of the affected wood. As the decay progresses, the wood loses its strength and becomes brittle, eventually disintegrating into small cubical pieces, sometimes referred to as “cubical brown rot.”
Brown rot fungi thrive in environments with high moisture content but can also continue their decay process with relatively lower moisture levels compared to other wood-decaying fungi. This makes them particularly problematic in areas where periodic moisture exposure occurs, leading to repeated cycles of wetting and drying.
Preventing brown rot involves controlling moisture levels in wood by ensuring proper ventilation, addressing leaks, and minimizing water exposure.
4. White Rot
White rot is another form of wood decay caused by specific fungi that target both cellulose and lignin, breaking them down and causing the wood to become lighter in color. Contrary to brown rot, where lignin remains relatively intact, in white rot decay, both lignin and cellulose are degraded, resulting in a whitish or bleached appearance of the affected wood.
The fungi causing white rot produce enzymes that break down both cellulose and lignin, leading to a more extensive decay compared to brown rot. The wood affected by white rot often becomes spongy, stringy, or fibrous in texture, losing its structural integrity as the decay progresses.
White rot fungi require relatively high moisture levels to thrive and are commonly found in damp or waterlogged wood. They are efficient at breaking down lignin, which gives affected wood its characteristic whitish appearance.
Preventing white rot involves controlling moisture levels by addressing leaks, improving ventilation, and minimizing prolonged exposure to damp conditions. Treatment usually involves removing and replacing the decayed wood and eliminating the source of moisture. In some cases, fungicidal treatments or preservatives might be used to prevent future infestations by white rot fungi. Regular inspections and prompt action to address moisture issues are crucial in preventing and managing white rot in wooden structures.
5. Heart Rot
Heart rot is a form of internal decay that affects the central or core area of a tree or timber. It’s caused by various fungi that enter the tree through wounds, cracks, or exposed areas, infecting the heartwood—the inner, non-living part of the tree.
This type of decay primarily targets the heartwood, gradually breaking down the wood’s structural components. As the fungi grow and spread within the tree, they cause the affected wood to become soft, spongy, and decayed. In severe cases, the decayed wood might be hollowed out, compromising the tree’s structural stability or the timber’s strength.
Heart rot fungi thrive in older or mature trees, often entering through wounds or natural openings and spreading throughout the heartwood over time. External signs of heart rot may not be immediately visible, as the decay occurs internally, making it challenging to detect without specialized tools or inspections.
Preventing heart rot involves promoting tree health by minimizing injuries, proper pruning, and avoiding unnecessary wounds or damage to the tree. For timber, selecting healthy and sound wood for processing and avoiding using trees with visible signs of decay is crucial in preventing structural issues caused by heart rot.
v. Damage Due to Insects
1. Termites in Timber
Termites are highly destructive insects that can cause significant damage to wooden structures, furniture, and various wood-based materials. They are often known for their ability to consume wood, leaving behind only a thin outer layer while hollowing out the inside.
Termites live in colonies and work as a highly organized society with specialized roles for different members, including workers, soldiers, and reproductive individuals. They feed on cellulose, which is found in wood, paper, and other plant-based materials.
Their feeding habits can result in severe structural damage to buildings, wooden foundations, furniture, and other cellulose-rich items. The damage caused by termites is often not immediately noticeable, as they tend to consume wood from the inside out, leaving the exterior appearance largely intact. Over time, this can compromise the integrity of the wood, leading to potential structural hazards.
Tree species, like teak (Tectona grandis), Sal (Shorea robusta), and some others, possess natural properties within their wood that make them resistant to termite attacks. These trees contain natural chemicals or compounds within their cellulose and heartwood that act as deterrents against termites and other wood-boring insects.
2. Beetles in Timber
Beetles indeed pose a significant threat to timber, causing rapid decay by consuming the wood and leaving it in a powdery or damaged state. These wood-boring insects can infest various types of wood, causing structural damage and compromising the integrity of timber products. Here’s an overview of some common types of wood-boring beetles:
Powder Post Beetles: These beetles target the sapwood of hardwoods with large pores. They lay eggs in the wood pores, and when the larvae hatch, they tunnel through the wood, creating fine powder. Even seasoned timber containing sapwood isn’t immune to their attack.
Longhorn Beetles: Ranging from 6 mm to 20 mm in size, these beetles have long, curved antennae. They prefer timber in forest yards and often attack sapwood, creating elliptical bore holes.
Ambrosia Beetles or Pin Hole Borers: These beetles, less than 6 mm in size, commonly attack structural timber and furniture in houses. They bore tunnels through both sapwood and heartwood, filling them with oval-shaped pellets.
Furniture Beetles: Similar in size to Ambrosia Beetles, they also attack both sapwood and heartwood. Their larvae create tunnels in the wood, filling them with characteristic oval-shaped pellets.
Deathwatch Beetles: Larger than some other wood-boring beetles, these insects typically infest timber already affected by fungi or decay. Their tunnels are larger and filled with bun-shaped pellets.
These beetles can cause extensive damage to timber and wooden structures. Preventive measures such as proper storage, timely use of treated wood, regular inspections, and applying insecticidal treatments can help protect against infestations and minimize the destructive impact of wood-boring beetles.

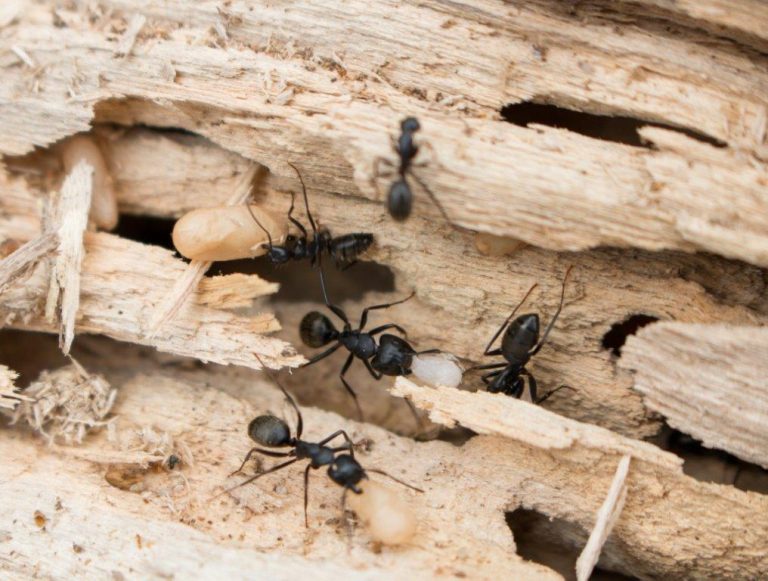

3. Carpenter Ants in Timber
Carpenter ants, usually black in color and diverse in size within a single colony, are distinct from termites in their behavior and diet. Unlike termites, they don’t consume wood for nutrition but excavate it to create nests and galleries for habitation. Their diet primarily consists of nectar, honeydew, and other sweet substances.
Carpenter ants tend to target slightly decayed or moisture-softened wood for nesting, but they can also continue burrowing into seemingly sound wood. Their nesting behavior can cause considerable damage to timber, creating tunnels and galleries within the wood. Often, timbers can be riddled with these galleries before the presence of ants is noticed.
The waste material or frass ejected from their excavations is relatively coarse and shredded in appearance, unlike the fine powdery frass left behind by termites. Detecting carpenter ant infestations usually involves identifying the presence of their galleries or observing the coarse frass near their workings.
Preventing carpenter ant infestations involves addressing moisture issues, repairing leaks or water-damaged wood promptly, and removing attractants such as food sources. Regular inspections and timely intervention are crucial in detecting and managing carpenter ant infestations to prevent significant damage to wooden structures.
Frequently Asked Questions
Natural defects in timber arise from irregularities during the tree’s growth, such as checks, shakes, knots, rind galls, and twisted fibers. These occur due to environmental factors like wind, frost, or improper pruning and can affect the structural integrity and appearance of wood.
A defect in timber refers to any natural or artificial imperfection that compromises the wood’s strength, appearance, or durability. Common defects include splits, warping, decay, and insect damage.
Defects can be minimized through proper care during tree growth, felling, and processing. This includes:
- Pruning branches correctly to avoid rind galls.
- Using controlled drying methods to prevent seasoning defects like case hardening and twisting.
- Protecting timber from excessive moisture, insects, and fungal infections.
Timber defects can be broadly classified into:
- Natural Defects: Knots, shakes, and twisted fibers.
- Conversion Defects: Wane and excessive slope of grains.
- Seasoning Defects: Case hardening, honeycombing, and cupping.
- Fungal Diseases: Dry rot, wet rot, and white rot.
- Insect Damage: Termites, beetles, and carpenter ants.
The most common defects include:
- Knots from branches.
- Splits and cracks due to improper drying.
- Rot and decay from fungal infections.
- Damage from termites and beetles.
Artificial defects in timber result from human activities during processing, handling, or construction. Examples include:
- Wane from improper milling.
- Torn grain caused by poor machining.
- Warping due to uneven drying during seasoning.
- Natural Defects: Occur during the tree’s growth due to environmental conditions (e.g., knots, shakes).
- Artificial Defects: Caused by human activities like milling and seasoning (e.g., torn grain, cupping).
Defects can:
- Reduce the wood’s structural strength.
- Impact its appearance and value.
- Increase maintenance needs and project costs.
