Fluid Dynamics

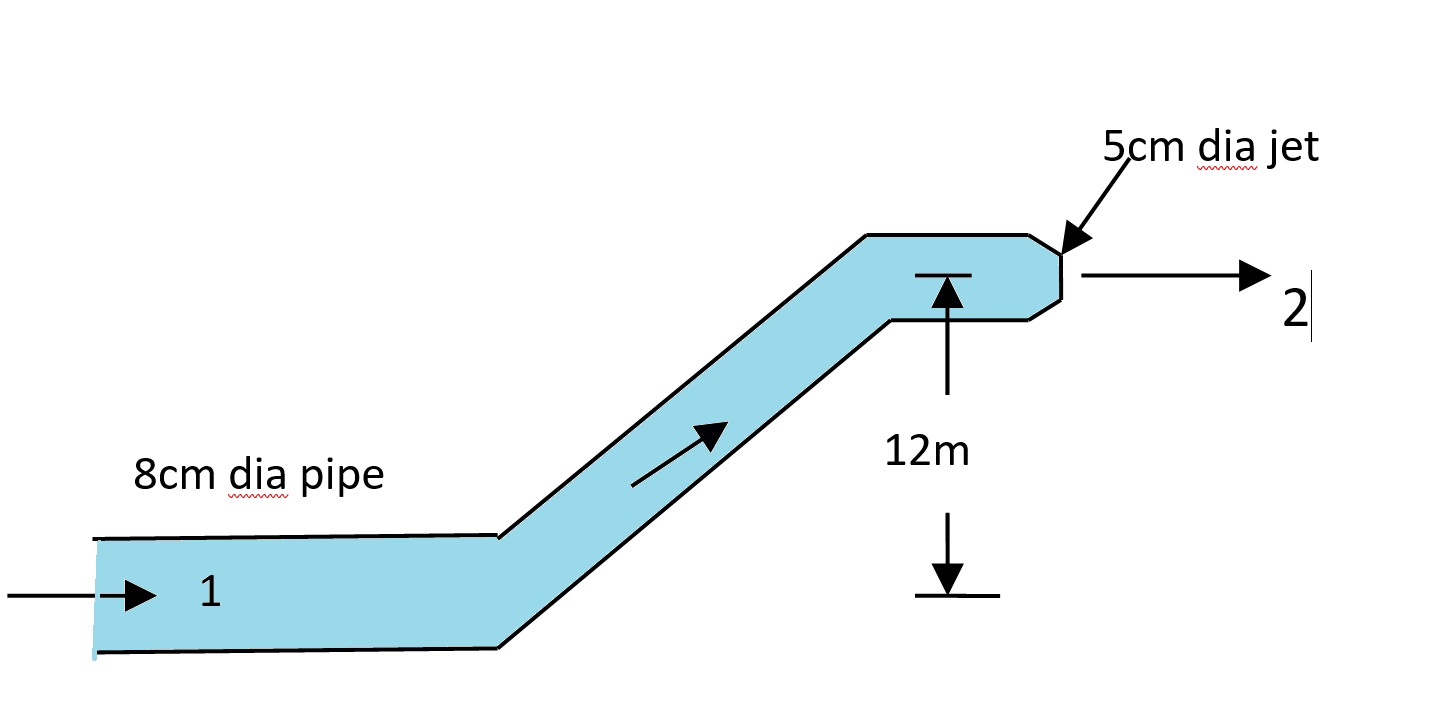

In the fig., the fluid is water and the pressure at point 1 is 180Kpa gage. If the mass flux is 15kg/s, what is the head loss between 1 and 2? (flux = flow rate)

In the fig., the fluid is water and the pressure at point 1 is 180Kpa gage. If the mass flux is 15kg/s, what is the head loss between 1 and 2? (flux =  flow rate)

Leave a Comment / /

Head Loss Calculation in a Pipe with Varying Diameters Head Loss Calculation Between Two Points in a Pipe Problem Statement […]

In the fig., the fluid is water and the pressure at point 1 is 180Kpa gage. If the mass flux is 15kg/s, what is the head loss between 1 and 2? (flux =  flow rate) Read More »

In the fig., one end of a U-tube is oriented directly into the flow so that the velocity of the stream is zero at this point (stagnation point). Neglecting friction, determine the flow of water in the pipe.

Leave a Comment / /

Flow Rate Determination in a U-Tube Flow Rate Determination in a U-Tube Problem Statement In the figure, one end of

In the fig., one end of a U-tube is oriented directly into the flow so that the velocity of the stream is zero at this point (stagnation point). Neglecting friction, determine the flow of water in the pipe. Read More »

Oil flows from a tank through 140m of 15cm diameter pipe and then discharge into air as shown in the fig. If the head loss from point 1 to point 2 is 0.55m of oil, determine the pressure needed at point 1 to cause 0.02 m3/s of oil to flow.

Oil flows from a tank through 140m of 15cm diameter pipe and then discharge into air as shown in the fig. If the head loss from point 1 to point 2 is 0.55m of oil, determine the pressure needed at point 1 to cause 0.02 m3/s of oil to flow.

Leave a Comment / /

Pressure Calculation for Oil Flow in a Pipe Pressure Calculation for Oil Flow in a Pipe Problem Statement Oil flows

Oil flows from a tank through 140m of 15cm diameter pipe and then discharge into air as shown in the fig. If the head loss from point 1 to point 2 is 0.55m of oil, determine the pressure needed at point 1 to cause 0.02 m3/s of oil to flow. Read More »

A 20cm diameter horizontal pipe is attached to a reservoir as shown in fig. If the total head loss between the water surface in the reservoir and the water jet at the end of the pipe is 1.8m, what are the velocity and flow rate of water being discharged from the pipe?

A 20cm diameter horizontal pipe is attached to a reservoir as shown in fig. If the total head loss between the water surface in the reservoir and the water jet at the end of the pipe is 1.8m, what are the velocity and flow rate of water being discharged from the pipe?

Leave a Comment / /

Velocity and Flow Rate from a Horizontal Pipe Velocity and Flow Rate from a Horizontal Pipe Problem Statement A 20

A 20cm diameter horizontal pipe is attached to a reservoir as shown in fig. If the total head loss between the water surface in the reservoir and the water jet at the end of the pipe is 1.8m, what are the velocity and flow rate of water being discharged from the pipe? Read More »

A 100mm diameter suction pipe leading to a pump carries a discharge of 0.03 m3/s of oil (sp gr = 0.85). If the pressure at point A in the suction pipe is a vacuum of 180mmHg, find the total energy head at point A w.r.t a datum at the pump.

Leave a Comment / /

Oil Suction Pipe Energy Analysis Energy Analysis of a Suction Pipe Problem Statement A 100 mm diameter suction pipe leading

A 100mm diameter suction pipe leading to a pump carries a discharge of 0.03 m3/s of oil (sp gr = 0.85). If the pressure at point A in the suction pipe is a vacuum of 180mmHg, find the total energy head at point A w.r.t a datum at the pump. Read More »

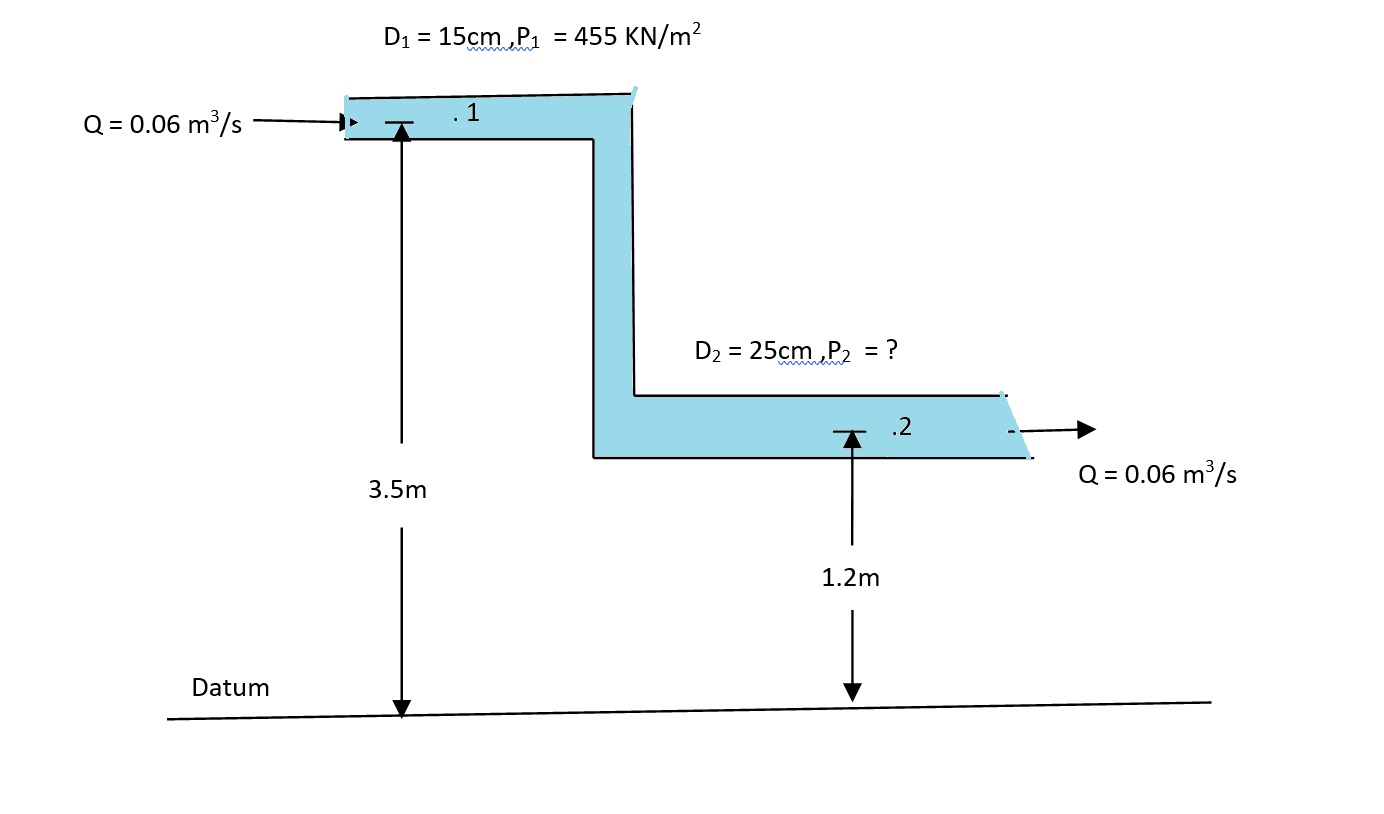

Oil (sp gr = 0.84) is flowing in a pipe under the conditions shown in the fig. If the total head loss from point 1 to point 2 is 0.9m, find the pressure at point 2.

Oil (sp gr = 0.84) is flowing in a pipe under the conditions shown in the fig. If the total head loss from point 1 to point 2 is 0.9m, find the pressure at point 2.

Leave a Comment / /

Pressure Calculation in a Two-Section Pipe Pressure Calculation in a Two-Section Pipe Problem Statement Oil (sp. gr = 0.84) flows

Oil (sp gr = 0.84) is flowing in a pipe under the conditions shown in the fig. If the total head loss from point 1 to point 2 is 0.9m, find the pressure at point 2. Read More »

A pipe line carrying oil of sp.gr. 0.8, changes in diameter from 300mm at a position A to 500mm at position B which is 5m at a higher level. If the pressures at A and B are 19.62 N/cm2 and 14.91 N/cm2 respectively, and the discharge is 150 lps, determine the loss of head and the direction of flow.

A pipe line carrying oil of sp.gr. 0.8, changes in diameter from 300mm at a position A to 500mm at position B which is 5m at a higher level. If the pressures at A and B are 19.62 N/cm2 and 14.91 N/cm2 respectively, and the discharge is 150 lps, determine the loss of head and the direction of flow.

Leave a Comment / /

Oil Flow in a Pipe with Diameter Change Oil Flow Analysis in a Pipe with Diameter Change Problem Statement A

A pipe line carrying oil of sp.gr. 0.8, changes in diameter from 300mm at a position A to 500mm at position B which is 5m at a higher level. If the pressures at A and B are 19.62 N/cm2 and 14.91 N/cm2 respectively, and the discharge is 150 lps, determine the loss of head and the direction of flow. Read More »

The water is flowing through a taper pipe of length 50m having diameters 40cm at the upper end and 20cm at the lower end, at the rate of 60 lps. The pipe has a slope of 1 in 40. Find the pressure at the lower end if the pressure at the higher level is 24.525 N/cm2 (a) assuming no loss of energy (b) a loss of 0.2m.

The water is flowing through a taper pipe of length 50m having diameters 40cm at the upper end and 20cm at the lower end, at the rate of 60 lps. The pipe has a slope of 1 in 40. Find the pressure at the lower end if the pressure at the higher level is 24.525 N/cm2 (a) assuming no loss of energy (b) a loss of 0.2m.

Leave a Comment / /

Pressure Calculation in Tapered Pipe Flow Pressure Calculation in Tapered Pipe with Energy Considerations Problem Statement The water is flowing

The water is flowing through a taper pipe of length 50m having diameters 40cm at the upper end and 20cm at the lower end, at the rate of 60 lps. The pipe has a slope of 1 in 40. Find the pressure at the lower end if the pressure at the higher level is 24.525 N/cm2 (a) assuming no loss of energy (b) a loss of 0.2m. Read More »

A pipe, through which water is flowing is having diameters 40cm and 20cm at sections 1 and 2 respectively. The velocity of water at section 1 is 5m/s. Find the velocity head at sections 1 and 2 and also compute discharge.

A pipe, through which water is flowing is having diameters 40cm and 20cm at sections 1 and 2 respectively. The velocity of water at section 1 is 5m/s. Find the velocity head at sections 1 and 2 and also compute discharge.

Leave a Comment / /

Pipe Flow Velocity and Discharge Calculation Pipe Flow Velocity and Discharge Calculation Problem Statement A pipe, through which water is

A pipe, through which water is flowing is having diameters 40cm and 20cm at sections 1 and 2 respectively. The velocity of water at section 1 is 5m/s. Find the velocity head at sections 1 and 2 and also compute discharge. Read More »

A fluid is flowing in a 20cm diameter pipe at a pressure of 28 KN/m2 with a velocity of 2.4m/s. The elevation of center of pipe above a given datum is 4m. Find the total energy head above the given datum if the fluid is (a) water, (b) oil of sp gr 0.82, and (c) gas with a specific weight of 6.4 N/m3.

Leave a Comment / /

Total Energy Head Calculation for Different Fluids Problem Statement A fluid is flowing in a 20cm diameter pipe at a

A fluid is flowing in a 20cm diameter pipe at a pressure of 28 KN/m2 with a velocity of 2.4m/s. The elevation of center of pipe above a given datum is 4m. Find the total energy head above the given datum if the fluid is (a) water, (b) oil of sp gr 0.82, and (c) gas with a specific weight of 6.4 N/m3. Read More »

Oil with sp gr 0.75 is flowing through a 15cm diameter pipe under a pressure of 105KN/m2. If the total energy relative to a datum plane 2.5m below the center of the pipe is 18m, determine the flow rate of oil.

Leave a Comment / /

Oil Flow Rate Calculation Problem Statement Oil with specific gravity 0.75 is flowing through a 15 cm diameter pipe under

Oil with sp gr 0.75 is flowing through a 15cm diameter pipe under a pressure of 105KN/m2. If the total energy relative to a datum plane 2.5m below the center of the pipe is 18m, determine the flow rate of oil. Read More »
